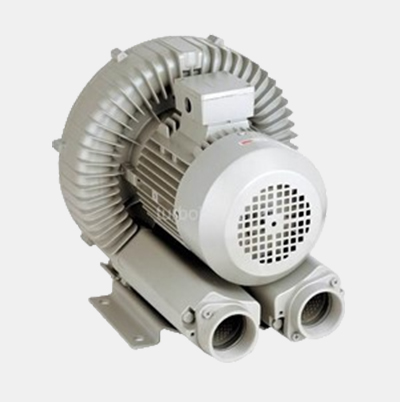

Turbo side channel Blower (Single Stage)

Item : E-22 Model : TBM-429
Rated Output : 1.5kw / 2hp (kw) Voltage : 220-240 (V)
Current : 6.7 (A) Voltage : 345-415 (V)
Max Volume : 220 m3/hr (M3/min) Noise : 70 (Db)
Weight : 22 kg (kg)
SuctionFilter 2"

Description

Turbo Side channel blowers are suitable for all those applications requiring considerably higher pressures than that which can be achieved using centrifugal fans. Side channel blowers are used in all those applications requiring an operating vacuum higher than the one achievable by a fan, but not as high as to require the use of a vacuum pump. The rotating parts of the blower are not in contact with the casing, there is therefore no friction during operation and thus no internal lubrication is necessary. The gas moving through the machine therefore remains uncontaminated and completely oil-free.
The use of Turbo side channel blowers is common in machine-building as high pressure ventilator, vacuum pump, air pump, booster, low pressure compressor and oil-free compressor. The applications are unlimited like aireting, dust cleaning, vacuum lifting, vacuum tables, blowing off, pneumatic transport, cooling and vacuum molding.
Turbo Die cast aluminium side channel blowers are robust units used for versatile applications. These blowers stand out for their durability, due to the robust aluminium design, which makes them highly resistant against corrosion. Other advantages of Turbo side channel ventilators include:

  •   Almost completely maintenance free
  •   Have a wide range of performance
  •   Robust yet light weight
  •   Reliability - Built to last
  •   50/60 Hz Voltage range motors
  •   Low level of noise
  •   Easy installation
  •   No vibration, complete dynamic stability
  •   Pulsation free discharge
  •   Simple and minimal maintenance
  •   Higher Pressure Ratios
  •   Cooler Running Bearings
  •   Longer Grease Life
  •   100% Oil Free Air
  •   Suitable to environment protection
  •   Small dimensions

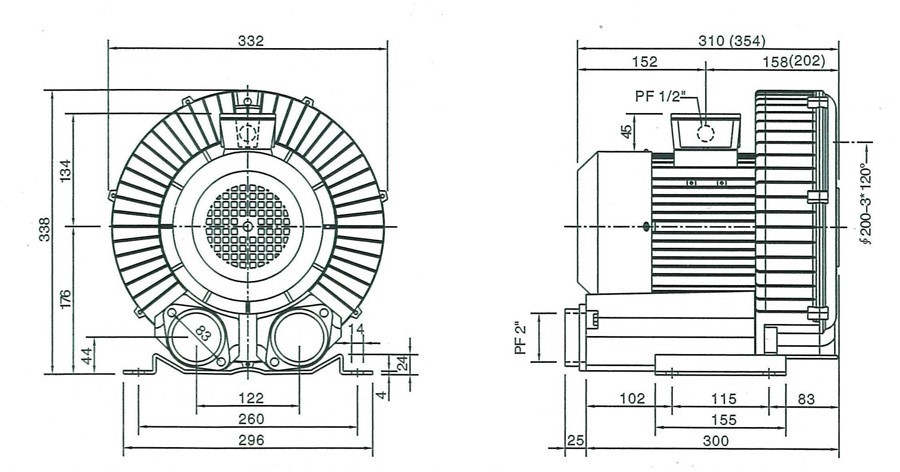

Installation Dimension of Single stage Blowers model 429-439
